Acura: 02-06 RSX & RSX Type-S - KW Variant 2 Coilover Kit - KW Suspensions

KW SuspensionsSKU: KWS15251001

Sale price$2,254.00
Snap Logo Lease for as low as $/week Learn More
In Stock



KW V2 Coilover Kit with it’s TVR-A adjustable rebound damping technology is the perfect choice  for drivers who want more than just outstanding looks and adjustable ride height for their vehicle.


The V2 coilovers give you the ability to adjust the rebound damping characteristics with 16 clicks of adjustment allowing the fine tuning of the ride comfort and performance by utilizing TVR-A (twin valve rebound-adjustable) technology, which gives you a more direct influence on the handling and comfort of your car. The stainless steel coilover struts, and the corrosion resistant components are built for long lasting durability.


Maximum lowering can be achieved with KW Variant 2 Coilovers that, within an approved lowering rate, ensures proper functioning suspension and adequate travel when the vehicle is lowered. Ride height continues to be easily adjustable, even after years of use, due to the dirt resistant trapezoidal thread and composite adjustment collar.


The harmonious pre-configured vehicle specific damper setup and spring rate increase driving pleasure with an optimal balance of comfort, sportiness, practicality and safety. Vehicle body roll is reduced during compression to give the benefit of more genuine and direct sporty handling while driving.


The KW Variant 2 ‘INOX-LINE’ Coilover Kit has been developed and manufactured in-house at KW’s facility in Germany, specifically for the particular vehicle. The V2 coilovers undergo comprehensive stress testing and fine tuning, as do all KW coilovers, at their 7-post Driving Dynamic Test Center and on the Nürburgring.


  • Customized suspension lowering
  • TVR-A adjustable 16 click rebound damping technology
  • 'INOX-LINE' struts (stainless steel technology)
  • High quality components
  • Composite spring seat
  • Dirt resistant trapezoidal thread
  • Body pitch and roll adjustment
  • Improved road handling
  • Technical component report
  • TUV tested adjustment parameters

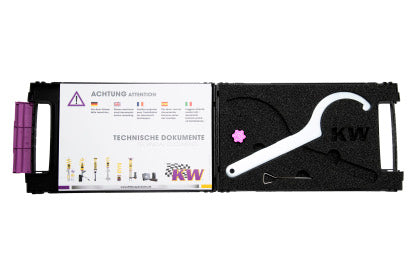

  • Comprehensive documentation for ease of use
  • KW Limited Lifetime Warranty


What is TVR-A Technology?  It is a two stage, patented technology that enables a small volume of oil to flow through an adjustable low speed bypass during low damper speeds, in higher damper speeds the main rebound stage valve opens allowing a larger volume of oil to flow. This provides a big improvement in terms of ride comfort without influencing the safety-relevant high-speed range. 16 precise clicks adjustment available, for individual settings, that allow you to choose between more comfort or more body control without affecting the compression damping.

     Pictures For Illustrative Purposes Only


      Acura Model / Year
      Lowering Rate
      *2002-2006 (2dr; coupe; fwd)
      Front: 1.4"-2.6"/ Rear: 1.4"-2.6"
      2002-2006 Front: 1.4"-2.6"/ Rear: 1.4"-2.6"
      RSX Type-S
      *2002-2006 (2dr; coupe; fwd) Front: 1.4"-2.6"/ Rear: 1.4"-2.6"
      Front: 1.4"-2.6"/ Rear: 1.4"-2.6"


      • Front and rear height adjustable by threaded shock bodies.


      • For vehicles with factory lowering, the mentioned lowering rates are reduced by the factory lowering.
