BMW: 13-18 320i xDrive, 328d, 328i xDrive & 330i xDrive, 14-16 428i xDrive, 17-20 430i xDrive - KW Variant 1 Coilover Kit - KW Suspensions

KW SuspensionsSKU: KWS1022000R

Sale price$1,764.00
Snap Logo Lease for as low as $/week Learn More
In Stock

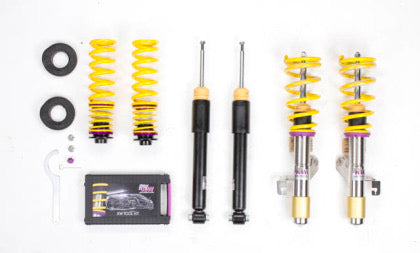

KW Variant 1 ‘INOX-LINE’ Coilover Kit is KW Suspension’s entry level performance coilover kit. The high quality inox-line stainless steel coilover struts, corrosion resistant springs, bump stops and dampers are optimally tuned resulting in a balanced and sporty feel, specific to vehicle application, and designed for long lasting driving pleasure.


Maximum lowering can be achieved with KW Variant 1 ‘INOX-LINE’ coilovers that, within an approved lowering rate, ensure proper functioning suspension and adequate travel when the vehicle is lowered. Ride height continues to be easily adjustable, even after years of use, due to the dirt resistant trapezoid thread and composite adjustment collar.


The pre-configured vehicle specific damper setup and spring rate increase driving pleasure with an optimal balance of comfort, sportiness, practicality and safety. Vehicle body roll is reduced during compression to give the benefit of more genuine and direct handling while driving.


The KW Variant 1 ‘INOX-LINE’ Coilover Kit has been developed and manufactured in-house at KW’s facility in Germany, specifically for the particular vehicle. The V1 coilovers undergo comprehensive stress testing and fine tuning, as do all KW coilovers, at their 7-post Driving Dynamic Test Center and on the Nürburgring.


  • Customized suspension lowering
  • ‘Inox-Line’ stainless steel struts
  • Corrosion resistance springs
  • Bump stops
  • Dirt resistant trapezoidal thread
  • Reduced body roll
  • Pre-configured damping
  • Technical Component Report
  • KW Suspension limited lifetime warranty
 Pictures For Illustrative Purposes Only


BMW Model / Year
Lowering Rate
320i xDrive
*2013-2016 (4dr; sedan; awd)
Front: 1.0"-2.2"/ Rear: 1.2"-2.4"
Front: 1.0"-2.2"/ Rear: 1.2"-2.4"

*2014-2016 (4dr; sedan; awd)
Front: 1.0"-2.2"/ Rear: 1.2"-2.4"
2014-2018 Front: 1.0"-2.2"/ Rear: 1.2"-2.4"
328i xDrive

*2014-2016 (4dr; sedan; awd)
Front: 1.0"-2.2"/ Rear: 1.2"-2.4"
2013-2016 Front: 1.0"-2.2"/ Rear: 1.2"-2.4"
328i xDrive
2013 (4dr; sedan; awd; 2dr; coupe; awd)
Front: 1.0"-2.2"/ Rear: 1.2"-2.4"
2013 Front: 1.0"-2.2"/ Rear: 1.2"-2.4"
330i xDrive
2017-2018 Front: 1.0"-2.2"/ Rear: 1.2"-2.4"
428i xDrive
2014-2016 (2dr; coupe; awd) Front: 1.2"-2.4"/ Rear: 1.4"-2.4"
2014-2016 Front: 1.2"-2.4"/ Rear: 1.4"-2.4"
430i xDrive
2017-2020 Front: 1.2"-2.4"/ Rear: 1.4"-2.4"


  • Valving is adjusted by adjustment knobs, rebound is only adjustable if the top of the piston road is accessible. This will depend on the design of the vehicle.
  • Vehicles equipped with electronic damper control, the electronic damper control needs to be disabled/shutdown. Disable/shutdown modules are available from KW.
  • Front height adjustable by threaded shock bodies.

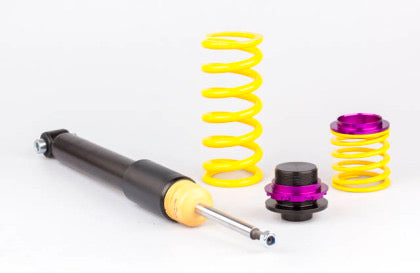

  • Rear height adjustable by adjustable spring perch.

CALIFORNIA WARNING: Cancer and Reproductive Harm -
